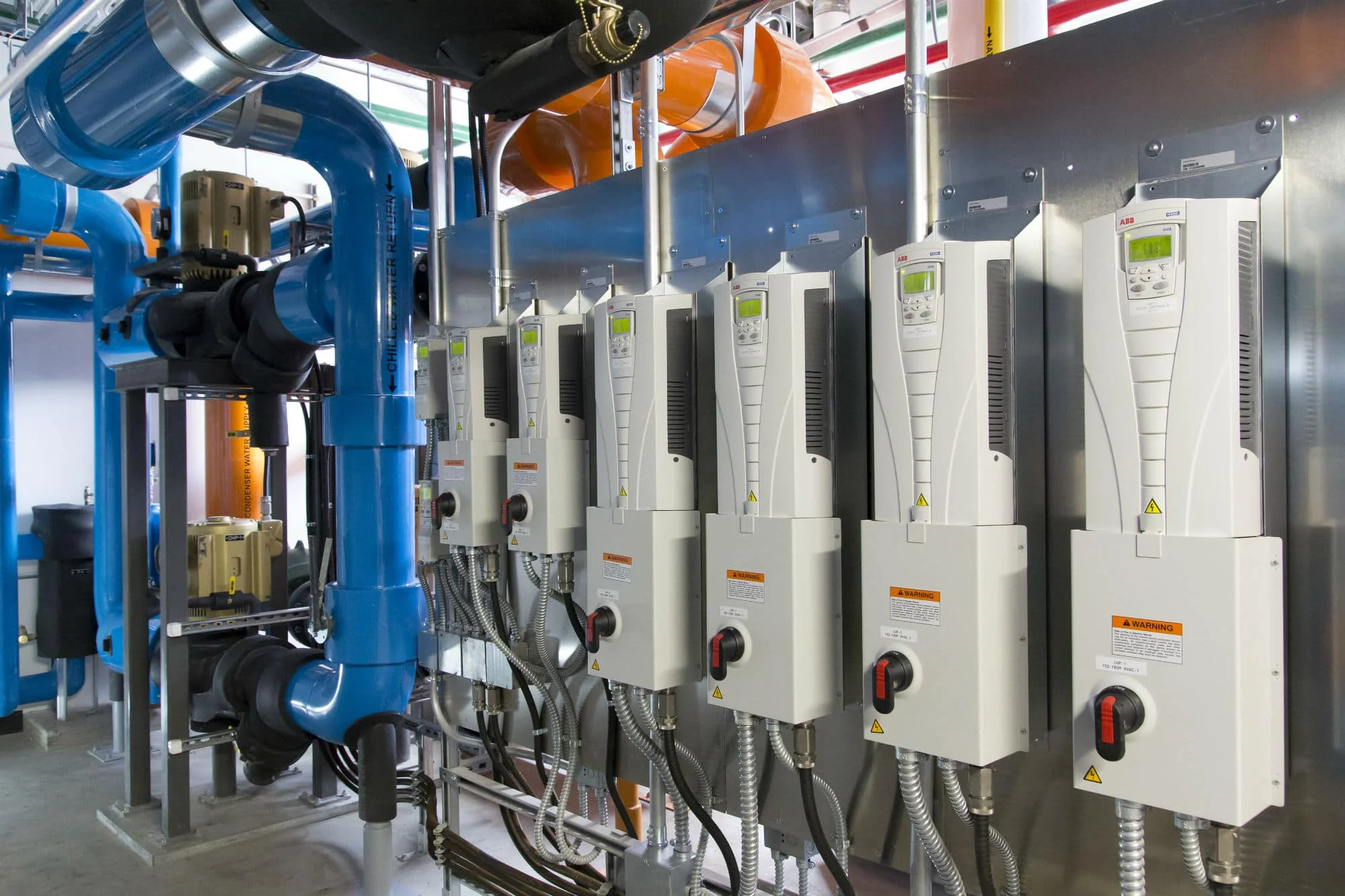

Variable Frequency Drives (VFD)
Specification: Up to 40% Electrical Draw Reduction
VFD retrofits on pump and fan motors to modulate power, cutting electrical consumption by up to 40%.
Engineering Scope & Overview
Motors running across-the-line at fixed 100% speed waste massive amounts of electricity during mild weather. In accordance with the Affinity Laws, reducing pump or fan speed by 20% slashes electrical power draw by nearly 50%. We integrate VFD drives from ABB, Yaskawa, Danfoss, and Square D.
WMI Field Protocol & Certified Best Practices
- Affinity law optimization matching motor RPM to real-time thermal load
- Harmonic filter installation protecting facility electrical distribution
- Integration with building automation systems via BACnet/Modbus
- Bypass contactor testing ensuring manual emergency run capability
Frequently Asked Questions
- How do the HVAC Affinity Laws explain VFD energy savings?
- The Affinity Laws state that motor power consumption varies with the cube of motor speed. Running a pump or fan motor at 80% speed requires only 51% of full electrical power.
- Why are harmonic filters and line reactors important when installing VFDs?
- Solid-state variable frequency drives generate electrical harmonics that can overheat building transformers and interfere with sensitive IT gear. Line reactors and active harmonic filters clean the power waveform.
- Can VFDs be linked to our existing building management system?
- Yes. All our drive installations feature native BACnet MS/TP, BACnet IP, or Modbus cards allowing facility operators to monitor motor current, kW draw, and run hours directly from their BMS console.
